Teknik Özellikler

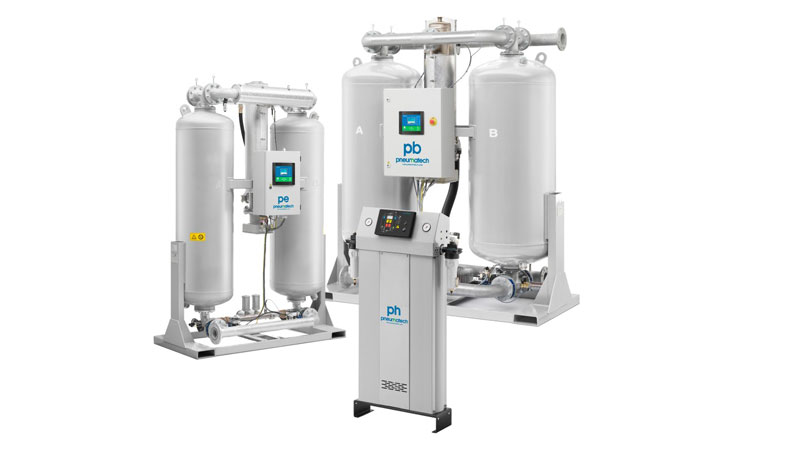

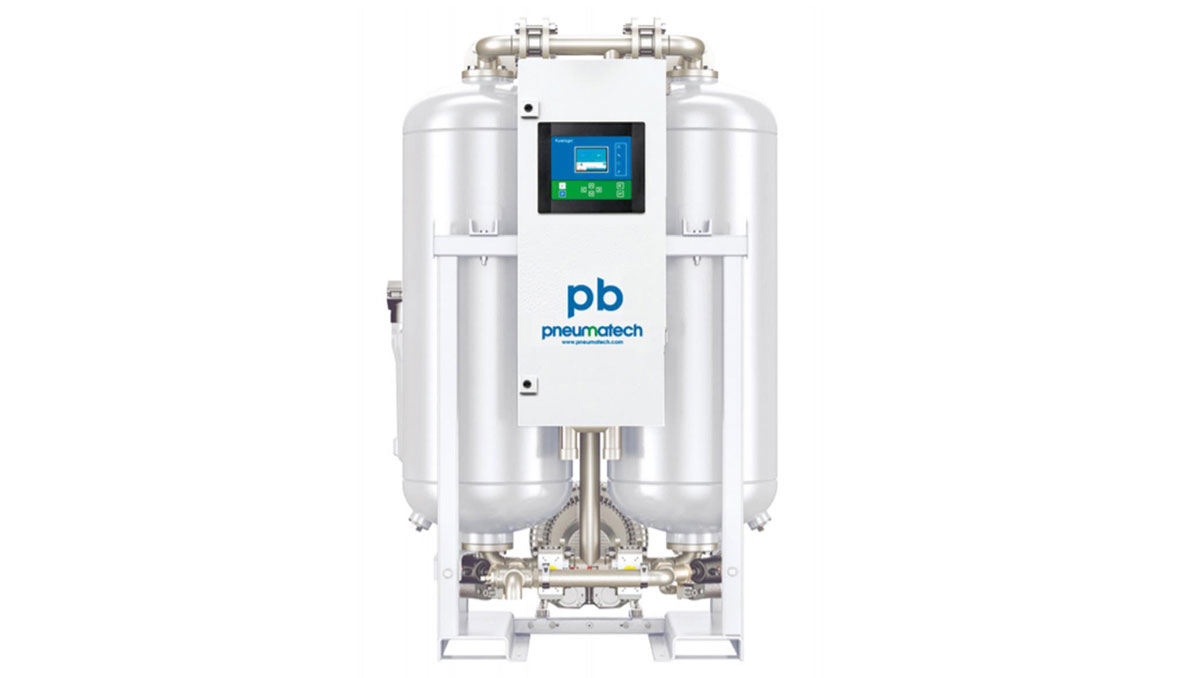

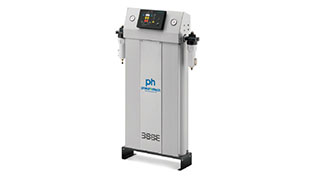

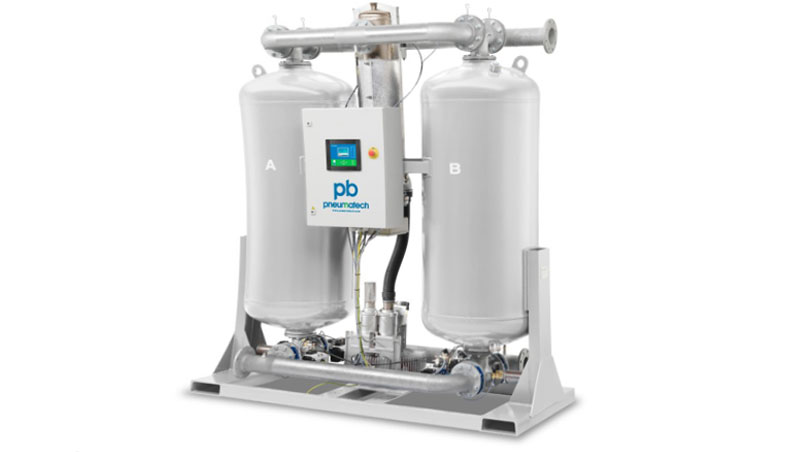

Desikant Tipi Hava Kurutucu
| EKOMAK CAD-D DESİKANT KURUTUCU | |||||||
|---|---|---|---|---|---|---|---|
| ÜRÜN NO | AÇIKLAMA | MODEL | BASINÇ Bar max. |
KAPASİTE m³/min |
BAĞLANTI Çapı (G) |
EBATLAR (mm) En x Boy x Yükseklik |
AĞIRLIK (kg) |
| 8102337824 | PH 2 HE | CAD-D 1 | 16 | 0,067 | 1/4″ | 106 x 197 x 540 | 7 |
| 8102337865 | PH 3 HE | CAD-D 1,5 | 16 | 0,09 | 1/4″ | 107 x 197 x 720 | 8 |
| 8102337907 | PH 5 HE | CAD-D 2 | 16 | 0,12 | 1/4″ | 106 x 197 x 720 | 9 |
| 8102337949 | PH 5 HE | CAD-D 2,5 | 16 | 0,15 | 1/4″ | 106 x 197 x 855 | 11 |
| 8102337980 | PH 6 HE | CAD-D 3 | 16 | 0,18 | 1/4″ | 106 x 197 x 855 | 11 |
| 8102338020 | PH 11 HE | CAD-D 5 | 16 | 0,30 | 1/2″ | 149 x 320 x 640 | 19 |
| 8102338061 | PH 15 HE | CAD-D 7 | 16 | 0,42 | 1/2″ | 149 x 320 x 725 | 22 |
| 8102338103 | PH 20 HE | CAD-D 10 | 16 | 0,60 | 1/2″ | 149 x 320 x 875 | 25 |
| 8102338145 | PH 25 HE | CAD-D 12 | 16 | 0,72 | 1/2″ | 149 x 320 x 1015 | 29 |
| 8102338186 | PH 35 HE | CAD-D 17 | 16 | 1,02 | 1/2″ | 149 x 320 x 1270 | 35 |
| 8102338228 | PH 45 HE | CAD-D 22 | 16 | 1,32 | 1/2″ | 149 x 320 x 1505 | 44 |
| 8102338879 | PH 55 HE | CAD-D 25 | 14 | 1,50 | 1/2″ | 394 x 807 x 1495 | 124 |
| 8102338895 | PH 75 HE | CAD-D 35 | 14 | 2,10 | 1″ | 394 x 827 x 1495 | 135 |
| 8102358853 | PH 95 HE | CAD-D 45 | 14 | 2,70 | 1″ | 394 x 847 x 1835 | 158 |
| 8102358903 | PH 120 HE | CAD-D 55 | 14 | 3,30 | 1″ | 564 x 847 x 1495 | 208 |
| 8102358937 | PH 140 HE | CAD-D 65 | 14 | 3,90 | 1 1/2″ | 564 x 907 x 1495 | 227 |
| 8102358978 | PH 190 HE | CAD-D 90 | 14 | 5,40 | 1 1/2″ | 564 x 907 x 1835 | 267 |
| 8102358960 | PH 230 HE | CAD-D 110 | 14 | 6,60 | 1 1/2″ | 734 x 907 x 1465 | 325 |
| 8102358911 | PH 275 HE | CAD-D 130 | 14 | 7,80 | 1 1/2″ | 734 x 907 x 1835 | 375 |
| 8102358929 | PH 350 HE | CAD-D 170 | 14 | 9,90 | 1 1/2″ | 929 x 907 x 1835 | 477 |
| 8102361220 | PH 420 HE | CAD-D 195 | 14 | 11,70 | 1 1/2″ | 929 x 907 x 1835 | 477 |
| 8102361220 | PH 535 HE | CAD-D 260 | 14 | 15,00 | 1 1/2″ | 734 x 1072 x 1835 | 389 |
